Bixpy K-1 Angler Pro Outboard Kit

The Bixpy K-1 Angler Pro Outboard Kit™ DOES NOT include a mounting adapter. You will need to purchase a mounting adapter separately based on the watercraft you are trying to motorize. To purchase a mounting adapter, go to bixpy.com/mounting-adapters.

Which adapter best fits your watercraft? Easily find the right Bixpy adapter for your watercraft on here.

Crush through wind, waves, and currents from sunrise to sunset! Go farther, explore more, stay out longer, and get back with the push of a button.

The Angler Pro Kit combines the ultra-light K-1 Motor with the latest lithium-iron-phosphate battery chemistry to deliver a massive punch to your K-1 motor, providing more than 38 lbs of thrust. This offers clean, efficient power for virtually any personal watercraft.

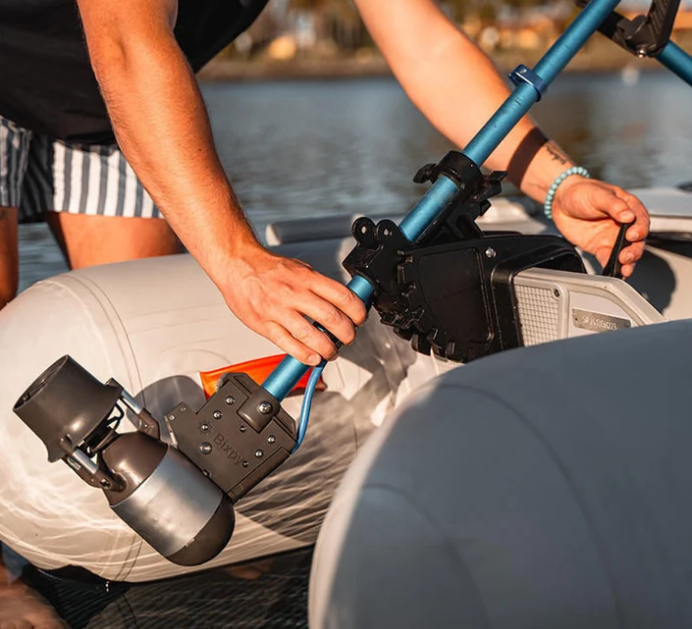

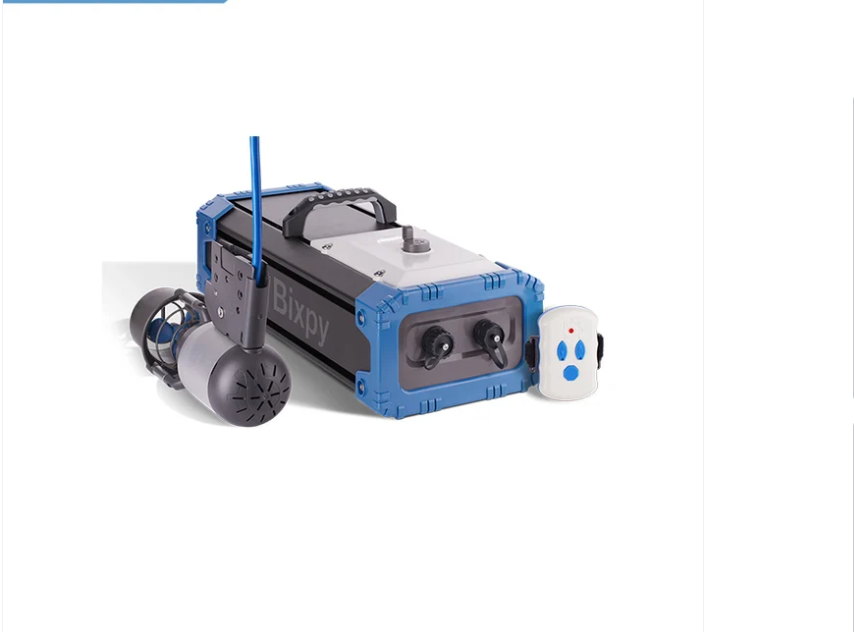

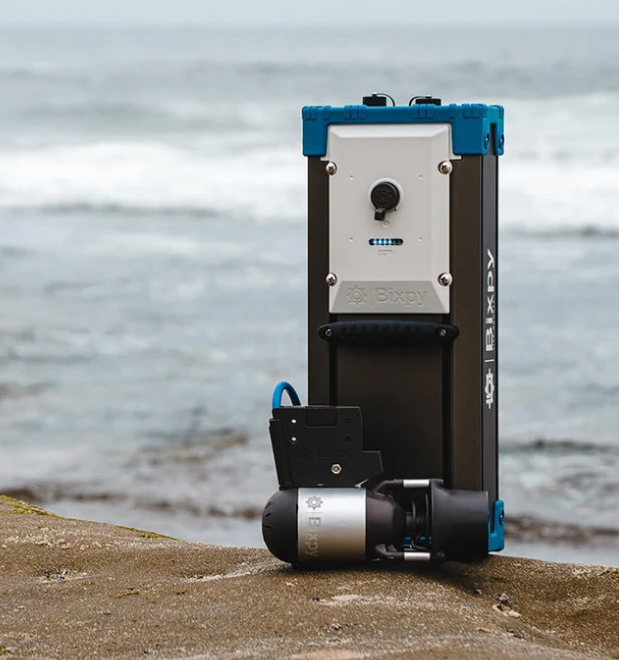

Whether you're powering a kayak, paddle board, dinghy, or inflatable boat, the K-1 Angler Pro Outboard Kit is your all-in-one solution for effortless propulsion. The kit includes the K-1 Motor, the rugged and long-lasting PP-768 Angler Pro Power Pack, a wireless remote, wall charger, kill switch, and all the hardware necessary to get you on the water in minutes.

Just choose the correct mounting adapter for your boat, and you’ll be cruising your favorite waterways in no time.

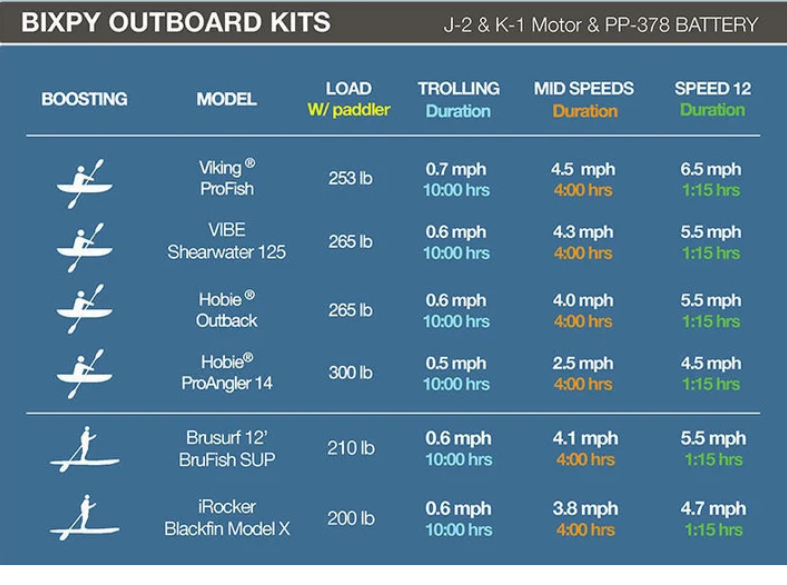

• Runs the Bixpy K-1 Motor for 2 + hours at top speed and up to 24 hours at slower speeds - continuously!
• The Warp speed feature allows you to reach maximum speed with a double click.
• Built-in standard rail system.

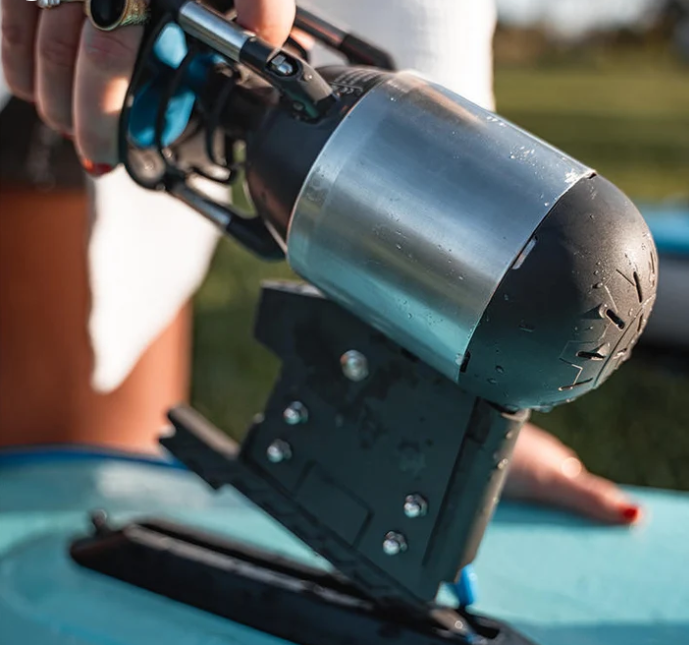

• The quick-release motor can be removed with just one bolt.
• Operates via Bluetooth remote control with 13 forward speeds and three reverse speeds.
• Powered by a rechargeable 25.6 V lithium iron phosphate battery core (768 Wh).
• Waterproof and dirt-proof with corrosion-resistant components and aluminum body.
• The remote control floats in case of accidental slippage.
• Safety: High-quality magnetic kill switch with leash.
• Water use: Rugged, anodized aluminum body for use in saltwater or freshwater.

K-1 MOTOR SPECIFICATIONS:
Motor Weight including cable and attachment adapter: 2.8 lb
Motor Size: L: 9.05" (230 mm) • W: 3.6" (91.5 mm) • H: 6.32" (160 mm).
Full Shroud width: 3.6" (91.5 mm).
Reduced Shroud width: 3.15" (80 mm).
Motor output: 33 lb of output with PP-378 battery, 38 lb of output with PP-768 battery.
Cable length: 55" (140 cm).
Depth rating: 100 ft (30 m).

PP-768 POWER PACK SPECIFICATIONS
Weight: 21 lb (9.5 kg)
Negative Buoyancy
Power Pack size: L: 15.7" (47.5 cm) • W: 7.9" (20 cm) • H: 4.8" (12 cm)
Battery type: Lithium Iron Phosphate rechargeable
Voltage: 25.6 Volts
Watt hours: 768Wh
Amp hours: 30Ah
Wall charger recharge time: 7-8 hours
Solar panel recharge time: 6-10 hours
